Detail Specification:

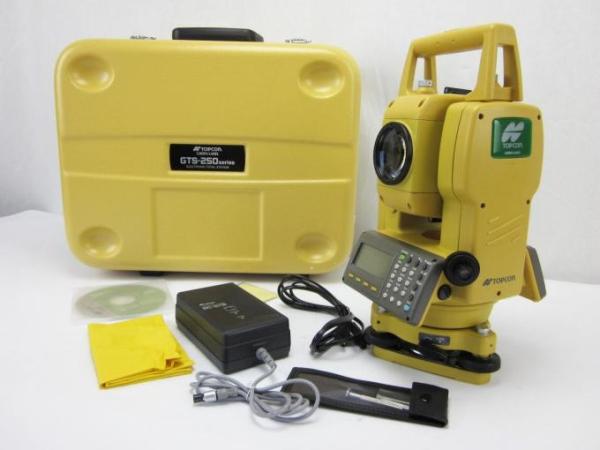

TOPCON GTS252 GTS255 REFLECTORLESS TOTAL STATION
TOPCON Total Station GTS-250 Series
The GTS-250 series combines Topcon's tradition of rugged
field-ready quality and accuracy and places it in an economical,
compact design perfect for everyday measuring and positioning
applications.
Meeting or exceeding the precision and durability of most
competitive high end models, Topcon's GTS-250 provides construction
professionals and surveyors performing construction layout with a
dedicated solution. The on-board software makes it easy to rapidly
shoot points for quick adjustments or resets. For more advanced
layout tasks use your GTS-250 with any of Topcon's field
controllers running MAGNET™ Software.
Economical, value priced measuring solution
Rugged, durable, water resistant design (IP54)
Two accuracies from which to choose: 2" and 5"
Dual-axis compensation
Onboard programs and 24, 000 point data storage
Ideal as a construction stakeout total station
Specification
Telescope150 Millimeters
Objective Lens Diameter45mm (EDM: 50mm)
Magnification30x
ImageErect
Field of View1° 30
Min. Focus Distance1.3 meters
Resolve Power3 "
Measurement Range
1 Prism6560 ft, 2000 meters
3 Prism8856 ft, 2700 meters
Measuring Accuracy
Prism Mode± (2mm + 2ppm x D)m. S. E. Fine, N/A
Measurement Time1mm: 1.2sec. (Initial 4sec. ) fine, 0.2sec.
(Initial 3sec. ) coarse, N/A
Angle Measurement
MethodAbsolute Reading
Detection2 horizontal, 1 vertical
Minimum reading5"/1", 1/5 mgon
Tilt Correction
TypeAutomatic Vertical and Horizontal compensator
MethodLiquid surface reflective profile sensor reading type
Compensating Range± 3'
Correction Unit1 arc sec, N/A
Computer Unit
Display2 screen, dot matrix graphic LCD display
Power
Approximate battery life9 hours including distance measurement, 40
Angle measurement only
Durability
Protection against water and dustIP54
Temperature-20 to 50 degrees C (-4 to 122 degree F)
WeightInstrument 4.9KG (10.8lb)
