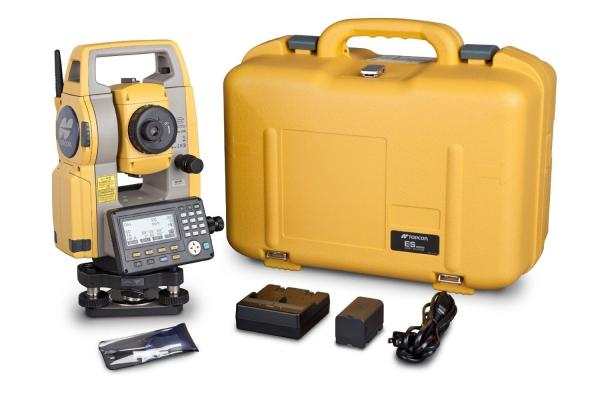

Topcon ES101,ES102,ES103,ES105,ES107 Total Station

Product Categories

Shanghai Hengyide Electronic Technology Co.,Ltd Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: Topcon ES101ES102ES103ES105ES107 Total Station
Brand: Topcon
Price: 1 USD

Ask Lasest Price
Brand Name :	Topcon
Model Number :	ES101,ES102,ES103,ES105,ES107
Delivery Time :	within 3-5days after the goods are paid.
Payment Terms :	TT
Supply Ability :	10000 Per Year

Add to Cart

Topcon’s new ES Series Total Stations – New Advanced Design with Superior Technology

The new ES Series was designed from the ground up to deliver the very latest technology advantages, all in a small,

sleek design – you’ll appreciate the advantages from the very first measurement.

Featuring a class leading EDM unit, the ES is able to measure up to 4,000m to standard prisms, and can measure in

reflectorless mode up to 500m at an incredible 3mm + 2ppm accuracy.

Measurements are carried out faster than ever, and at 15mm (over 30m), the bright red laser dot pinpoints features with ease.

	World’s First TSshield™ Remote Security and Notification System Disable your instrument remotely if lost or stolen Get notified of Firmware updates Online instrument operational history See more here...
	Ultra-Powerful, Advanced EDM 500m non-prism range 4000m prism range Less than 1 second fine measurement
	The exclusive LongLink™ communications functionality in every ES Series model provides operational capabilities never before offered in a manual total station. With a 300m range wireless communication using Bluetooth Class 1 technology, you can now operate the data collector from the “smart-spot” of the crew, the prism pole. Also referred to the two-man, economical robot solution, Topcon’s new LongLink™ technology brings a whole new level of flexibility to your manual field crew.
	Advanced Angle Encoder System “Best in Class” 1” angle accuracy available Incorporates exclusive IACS (Intelligent Automatic Calibration System) on 1” & 2” models
	Ultimate in Rechargeable operation - 36 Hours! Up to 36 hours of operation on a single charge.*1 Eliminates the need for nightly recharging and carrying extra batteries. Work with confidence all day without the worry of dead batteries.
	Rugged, Waterproof Design Waterproof/Dustproof IP66 design handles the toughest environments Magnesium-alloy housing providing stable angle accuracy Completely
	Easy Access USB 2.0 Memory Up to 8MB storage Environmentally protected Compatible with industry standard accessories and cables

*1 Operating time may vary depending on environmental conditions and type of work being performed.

QUICK Specifications
Angle Measurement
	Min. Resolution/Accuracy
ES-101	0.5”/1”
ES-102	1”/2”
ES-103	1”/3”
ES-105	1”/5”
ES-107	1”/7”
IACS (Independent Angle Calibration System)	Standard om 1” & 2” models
Compensation	Dual-axis compensator
Distance Measurement
Prism EDM Range	4000m (ES-107 3000m)
Prism EDM Accuracy	2mm+2ppm
Non-Prism Range	500m
Non-Prism Accuracy	3mm+2ppm (0.3-200m)
Measuring Time	Fine: 0.9 sec Rapid: 0.7 sec Tracking: 0.3 sec
Communications
LongLink™ rover communications utilizing Class 1 Bluetooth
USB 2.0 Slot
RS-232C Serial
General
Display/Keyboard	Dual, Graphic, Backlit LCD (ES-107 Single)
Battery Operation	up to 36 hours
Dust/Water Protection	IP66
Wireless Connection	Bluetooth Class 1
Operating Range	-20C to +50C -30C to +50C * -20C to +60C **
