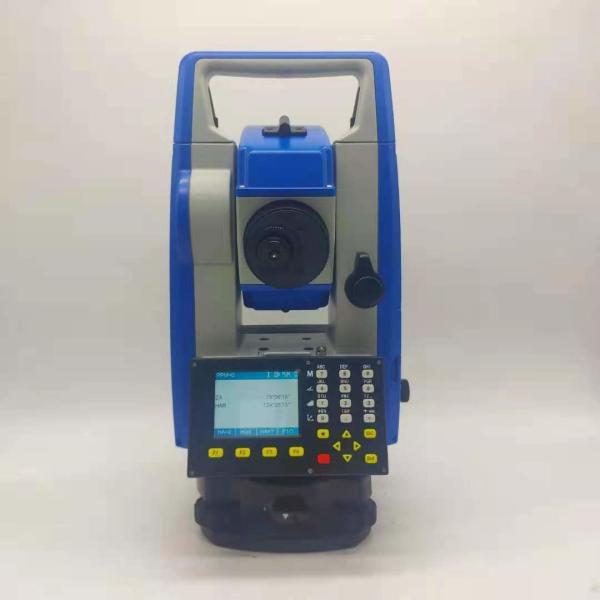

New Model Stonex R3 reflectoless 800m Total Station for surveying
instrument
Long measuring distance (800m without prism)
Using digital phase laser ranging technology, high precision
measurement of long-distance target can be achieved in prism free
mode, ranging up to 800 meters; Single prism 3500 meters.
The ranging speed is fast
Equipped with a new type of fast digital ranging lens, and the
application of new ranging technology, a single fine measurement of
0.8 seconds, tracking of 0.3 seconds, effectively guarantee the
measurement efficiency.
One click measurement
When the instrument is measuring, the eye does not need to leave
the telescope, and the measurement can be completed with one key.
One key measurement has little influence on measurement operation,
which can ensure the accuracy of measurement work.
Two axis compensation
The fully automatic two axis compensator, combined with the visual
display of electronic graphics blisters, can achieve accurate
leveling and ensure the accuracy of horizontal position.
| project | Subproject | description |
| telescope | Imaging | Just like |
| Magnification | 30× |
| Lens tube length | 160mm |
| Resolution | 2.8″ |
| Field of view | 1°30' |
| Effective aperture | 44mm |
| Angle measurement part | Angle measurement method | Absolute coding system |
| Precision | level 2 |
| Minimum display reading | 1" |
| Display unit | 360° / 400 gon / 6400 mil |
| Ranging part | Ranging light source | 650~690nm |
| measure time | 0.5s (quick test) |
| Spot diameter | 12mm×24mm (at 50m) |
| Laser pointing | Switchable laser pointer |
| Laser class | Class 3 |
| No prism | 800 m |
| Single prism | 3500 m |
| Prism accuracy | 2mm+2×10 -6×D |
| Prism-free accuracy | 3mm+2×10-6 ×D |
| Prism constant correction | -99.9mm +99.9mm |
| Minimum reading | Precision measurement mode 1 mm Tracking measurement mode 10 mm |
| Temperature setting range | −40℃+60℃ |
| temperature range | Step size 1℃ |
| Atmospheric pressure correction | 500 hPa-1500 hPa |
| Atmospheric pressure | Step length 1hPa |
| Level | Long level | 30″/ 2 mm |
| Circular level | 8′ / 2 mm |
| Laser plummet | wavelength | 635 nm |
| Laser class | Class 2 |
| Precision | ±1.5 mm / 1.5m |
| Spot size/energy | Adjustable |
| Maximum output power | 0.7 -1.0 mW, adjustable through software switch |
| Compensator | Compensation method | Dual axis compensation |
| Compensation method | Graphical |
| The scope of work | ±4′ |
| Resolution | 1" |
| Onboard battery | power supply | lithium battery |
| Voltage | DC 7.4V |
| operating hours | About 20 h (25℃, measurement + distance measurement, interval 30s), only when
measuring angle> 24 h |
| Display/Button | Types of | 2.8 inch color screen |
| illumination | LCD backlight |
| button | Full numeric keyboard |
| data transmission | Interface Type | USB interface |
| Bluetooth transmission | stand by |
| Environmental indicators | Operating temperature | -20℃ - 50℃ |
| storage temperature | -40℃ - 60℃ |
| Waterproof and dustproof | IP 54 |
We can use the different international express company, usually,
our first choice is DHL. if you have specified requirement , please inform us before the order.
Our Services
our products are original and 100% new. and they will be carefully
checked before we ship them out.
we provide one year quality warranty, within one year since you
bought the products from us, you will get our technology support.
Company Information
Shanghai Galxy International Trade company, Ltd. combining with
developing, researching and producing. Our company is located in
Pudong Developing Zone, and has two subsidiary companies: Shanghai
Galaxy International Trade Co., Ltd. and Mato Opto-electrical
High-tech Company. Our company has researching center and factory
in Changzhou.
Our main products are as following: total station, electronic
theodolite, automatic level, laser level, rotation laser, GPS,
distance laser sensor and accessories, such as tripod, prism, pole,
staff and USB cable for total station. Our company designs software
for many domestic and oversea factories, for example, Boif, TJOP,
Stanley, and Cst-Berger. We have powerful capacity in technical
research, and the products we designed have advanced technology and
steady performance. The non-prism total station and the absolute
coding measure instrument we developed and produced have very
competitive points in the measure instrument market.
