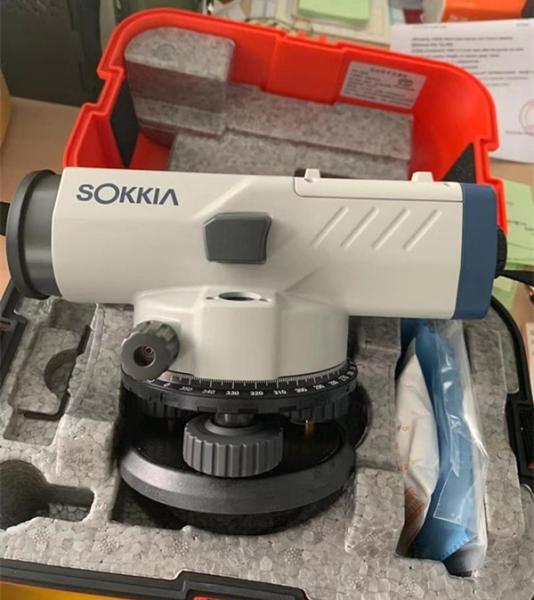

New Model Sokkia Brand B40A Automatic Level With High Precision
Detail Specification:
World-Proven Precision and Durability
SOKKIA B40A Auto-Level
Features:
•3 Models - 32x, 28x, and 24x Magnifications
•Rapid, Accurate, and Stable Automatic Compensation
•Ultra-Short 20cm (7.9 in.) Focusing
•All-Weather Dependability
•Clampless, Endless Fine Horizontal Adjustments
Technical Data:
| Model | B40A |
| Telescope |
| Length | 214mm(8.42in.) |
| Magnification | 24X |
| Objective Aperture | 32mm(1.26in.) |
| Resolving Power | 4" |
Field of View
(at 100m/328ft.) | 1°25' (2.5m / 8.2ft.) |
| Minimum Focus | 0.2m (7.9 in.)from end of telescope
0.3m (1ft.) from interstrument center |
| Image | Erect |
| Stadia Constant | 0 |
| Stadia Ratio | 100 |
| Focusing Knob | 1-spped |
| Focusing Aid | Gun Sight |
| Accuracy (1km double run leveling) |
| Without Micrometer | 2.0mm (0.08in) |
| With Micrometer | n/a |
| Compensator |
| Type | Pendulum compensator with magnetic damping system |
| Setting Accuracy | 0.5" |
| Working Range | ±15' |
| Circular Level |
| Sensitivity | 10'/2mm |
| Horizontal Circle |
| Diameter | 99mm (3.9in) |
| Minimum Division | 1°/ 1gon |
| General |
| Water Resistance | IPX6(IEC 60529:2001) |
| Operating Temperature | -20 to 50 ℃ (-4 to +22 °F) |
| Width | 122mm(4.8in.) |
| Size Length | 214mm(8.4in.) |
| Height | 140mm(5.5in.) |
| Weight | 1.5kg(3.3lbs.) |
