    RTK GNSS Receiver Stonex S9II GNSS Receiver 555 channels to track GPS, GLONASS, BeiDou and Galileo

    Ask Lasest Price
    Brand Name : Stonex
    Model Number : S9II
    Certification : CE
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 100 set per month
    Delivery Time : 3 days
    • Product Details
    • Company Profile

    RTK GNSS Receiver Stonex S9II GNSS Receiver 555 channels to track GPS, GLONASS, BeiDou and Galileo

    Products information

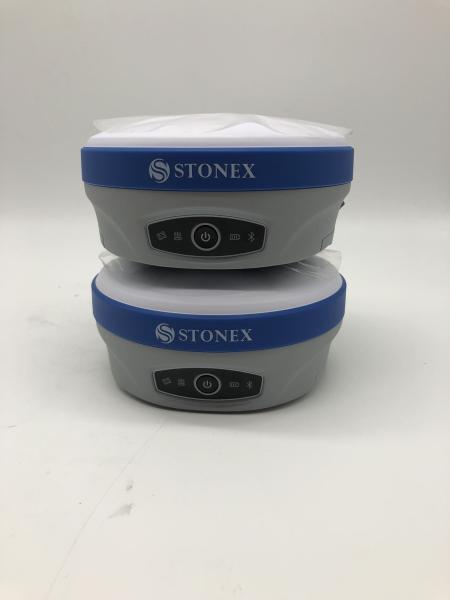

    S9II GNSS Receiver

    Powerful Precision Performance

    FEATURES

    • 555 channels to track GPS, GLONASS, BeiDou and Galileo
    • E-Bubble sensor allows for accurate measurements even when pole is not level
    • Advanced technology for fast initialization and reinitialization time
    • Web UI to monitor and change settings
    • 2 hot swappable batteries that provide up to 12 hours of operation on a single charge
    • IP67 rating for water and dust
    • Designed to withstand 2 m pole drop onto a concrete floor with no damage

    TECHNICAL SPECIFICATIONS

    Channels:555
    GPS:L1 C/A, L1C, L2C, L2P, L5
    GLONASS:L1 C/A, L2C, L2P, L3, L5
    BeiDou:B1, B2, B3
    Galileo:E1, E5a, E5b, E5 AltBOC, E6
    QZSS:L1 C/A, L1C, L2C, L5, L6
    SBAS:L1, L5
    IRNSS:L5
    Position Rate:5 Hz
    Signal Reacquisition:< 1 sec
    RTK Signal Initialization:Typically < 10 s
    Hot Start:Typically < 15 s
    Initialization Reliability:> 99.9 %
    Internal Memory:8 GB
    Battery:2 rechargeable and replaceable intelligent lithium batteries
    7.2 V – 3400 mAh
    Voltage:9 to 22 V DC external power input with over-voltage protection (5 pins Lemo)
    Working Time:Up to 12 hours
    Charge Time:Typically 4 hours
    Dimensions:157 mm x 76 mm
    Weight:1.19 kg (one battery)
    1.30 kg (two batteries)
    Operating Temperature:-40 °C to 65 °C
    Storage Temperature:-40 °C to 80 °C
    Waterproof/Dustproof:IP67
    Shock Resistance:Designed to endure to a 2m drop pole on concrete floor with no damage
    Vibration:Vibration resistant

    Channels555
    Signal Reacquisition< 1 sec
    Internal Memory8G
    Working Time
    Up to 12 hours
    Charge TimeTypically 4 hours
    Weight1.19 kg (one battery)
