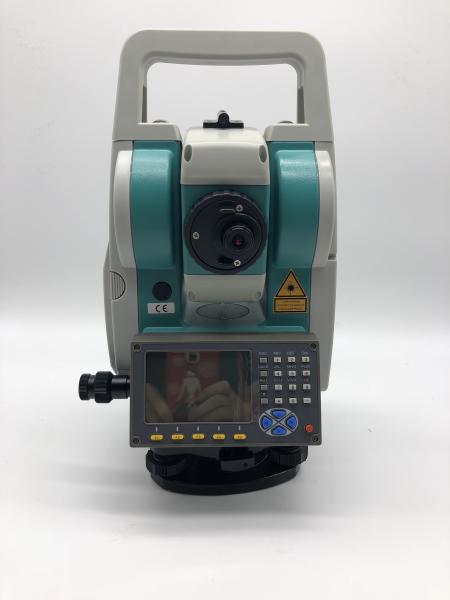

MODEL MTS1202R

Telescope

Image --------------------------------------Erect

Magnification -----------------------------30X

Effective Aperture ------------------------45mm

Resolving Power----------------------------- 4"

Field Of View ----------------------------------1°30'

Minimum Focus -------------------------------1.5m

Distance Measurement(under Fair Weather Condition)

PRISMLESS : -------------------------------------500 m

Range 1P ---------------------------------------------3km

3P------------------------------------------------------ 5km

Accuracy------------------------------------------------ 2mm+2ppmxD

Minimum Count---------------------------------------- 1mm

Distance Unit ft.Or m selectable

Measuring Time

Fine -------------------------------------------------------1.8sec.(first time2.5sec.)

Tracking -------------------------------------------------0.4 Sec.

Maximum display --------------------------------------999999.999m

Atmospheric Correction

Temperature ---------------------------------------------C or F

Atmospheric Pressure -----------------------------------hPa/mmH/inHg

Atmospheric Deflection &

Earth Curvature

Correction-----------------------------------------------------k=0.14/0.20/0

Prism Constant ----------------------------------------------0 mm / 30 mm

Angle Measurement

Measurement Method--------------------------------------Incremental Photoelectronic Encoder

Detection Method

Horizontal--------------------------------------------------- Dual

Vertical------------------------------------------------------ Dual

Accuracy ----------------------------------------------------2"

Minimum Readout ----------------------------------------1"and5"

Sensitivity of Vials

Plate Vial ----------------------------------------------------30"/2mm

Circular Vial -------------------------------------------------8'/2mm

Compensation ----------------------------------------------Dual Axis Compensation

Type ----------------------------------------------------------Liquid-electric detection/Plate level

Compensation Range------------------------------------ +/-3'

Resolution --------------------------------------------------1"

Optical Plummet

Image --------------------------------------------------------Erect

Magnification -----------------------------------------------3X

Focus Rang -------------------------------------------------0.5m-infinity

Display --------------------------------------------------------Big Display , Double Side, LCD

Data Port -----------------------------------------------------RS-232

Hengyide Group is a group company combining with developing, researching and producing. Our group is located in Pudong Developing Zone, and has two subsidiary companies:Shanghai Hengyide Electronic Technology Co.,ltd and Mato Opto-electrical High-tech Company. Our company has researching center and factory in Changzhou. Our main products are as following: total station, electronic theodolite, automatic level, laser level, rotation laser, GPS, distance laser sensor and accessories, such as tripod, prism, pole, staff and USB cable for total station. Our company designs software for many domestic and oversea factories, for example, Boif, TJOP, Stanley, and Cst-Berger. We have powerful capacity in technical research, and the products we designed have advanced technology and steady performance. The non-prism total station and the absolute coding measure instrument we developed and produced have very competitive points in the measure instrument market.We expect that we could cooperate with more business partners from all over the world. In addition, we can do OEM service for companies or dealers that want to find better producers in China.Our goal is to produce the best surveying instruments in the world.Our target is to globalize the market, internationalize the quality and maximize the profit!
