Detail Specification:

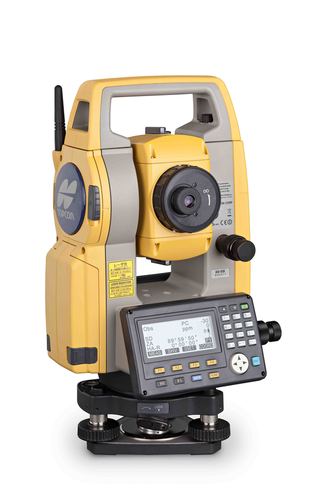

TOPCON ES101 REFLECTORLESS TOTAL STATION
| Telescope |
| Magnification / Resolving power | 30x / 2.5" |
| Others | Length:171mm, |
| Objective aperture:45mm (48mm for EDM), |
| Image:Erect,Field of view:1°30'(26m/1,000m), |
| Minimum focus:1.3m, |
| Reticle illumination:5 brightness levels |
| Angle measurement |
| Display Resolution | 0.5" / 1" |
| Accuracy (ISO 17123-3:2001) | 1" |
| Dual-axis compensator / Collimation compensation | Dual-axis liquid tilt sensor, |
| working range: ±6' / Collimation compensation available |
| Distance measurement |
| Laser output | Reflectorless mode: Class 3R / Prism / sheet mode: Class 1 |
| Measuring range (under average conditions) |
| Reflectorless | 0.3 to 500m |
| Reflective sheet | 1.3 to 500m |
| Mini prisms | 2500m |
| One AP prism | 1.3 to 5000m |
| Three AP prisms | to 6000m |
| Display resolution | 0.001m / 0.01ft |
| Accuracy (ISO 17123-4:2001)(D=measuring distance in mm) |
| Reflectorless | (3 + 2ppm x D) mm |
| Reflective sheet | (3 + 2ppm x D) mm |
| AP/CP prism | (2 + 2ppm x D) mm |
| Measuring time | Fine: 0.9s, Rapid: 0.7s, Tracking: 0.3s |
| Interface and Data management |
| Display / Keyboard | Graphic LCD, 192 x 80 dots, backlight, |
| contrast adjustment / Alphanumeric keyboard / |
| 25 keys with backlight |
| Control panel location | On both faces |
| Trigger key | On right instrument support |
| Data storage |
| Internal memory | Approx. 10,000 points |
| Plug-in memory device | USB flash memory (max. 8GB) |
| Interface | Serial RS232C, USB2.0 (Type A, for USB flash memory) |
| Bluetooth modem(optional) | Bluetooth Class 1, Ver.2.1+EDR, |
| Operating range: up to 300m |
| General |
| Laser-pointer | Coaxial red laser using EDM beam |
| Guide light | Green LED (524nm) and Red LED (626nm), |
| Operating range: 1.3 to 150m |
| Levels | |
| Graphic | 6' (inner circle) |
| Circular level | 10' / 2mm |
| Optical plummet | Magnification: 3x, Minimum focus: 0.3m from tribrach bottom |
| Laser plummet (option) | 5 brightness level are ready for optimum visibility |
| Dust and water protection | IP66 (IEC 60529:2001) |
| Operating temperature | -20 to +50ºC |
| Size with handle | W191 x D181 x H348mm |
| Weight with handle and battery | Approx. 5.6kg (12.3 lb.) |
| Power supply |
| Battery | BDC70 detachable battery |
| Operating time (20ºC) | Approx. 36 hours |
Product show:
Packaging & Shipping
Packaging:
Topcon Total Station ES-101 with Laser Plummet and Bluetooth
Size: 58cm x 50cm x 45cm Weight:13kg
Shipping: 1 weeks after payment confirmed
