    High Precision Surveying Equipment Station Total Sunway Ats 120 A In Stock For Sale

    Ask Lasest Price
    Brand Name : Sunway
    Model Number : ATS120A
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs per year
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    High Precision Surveying Equipment Station Total Sunway Ats 120 A In Stock For Sale

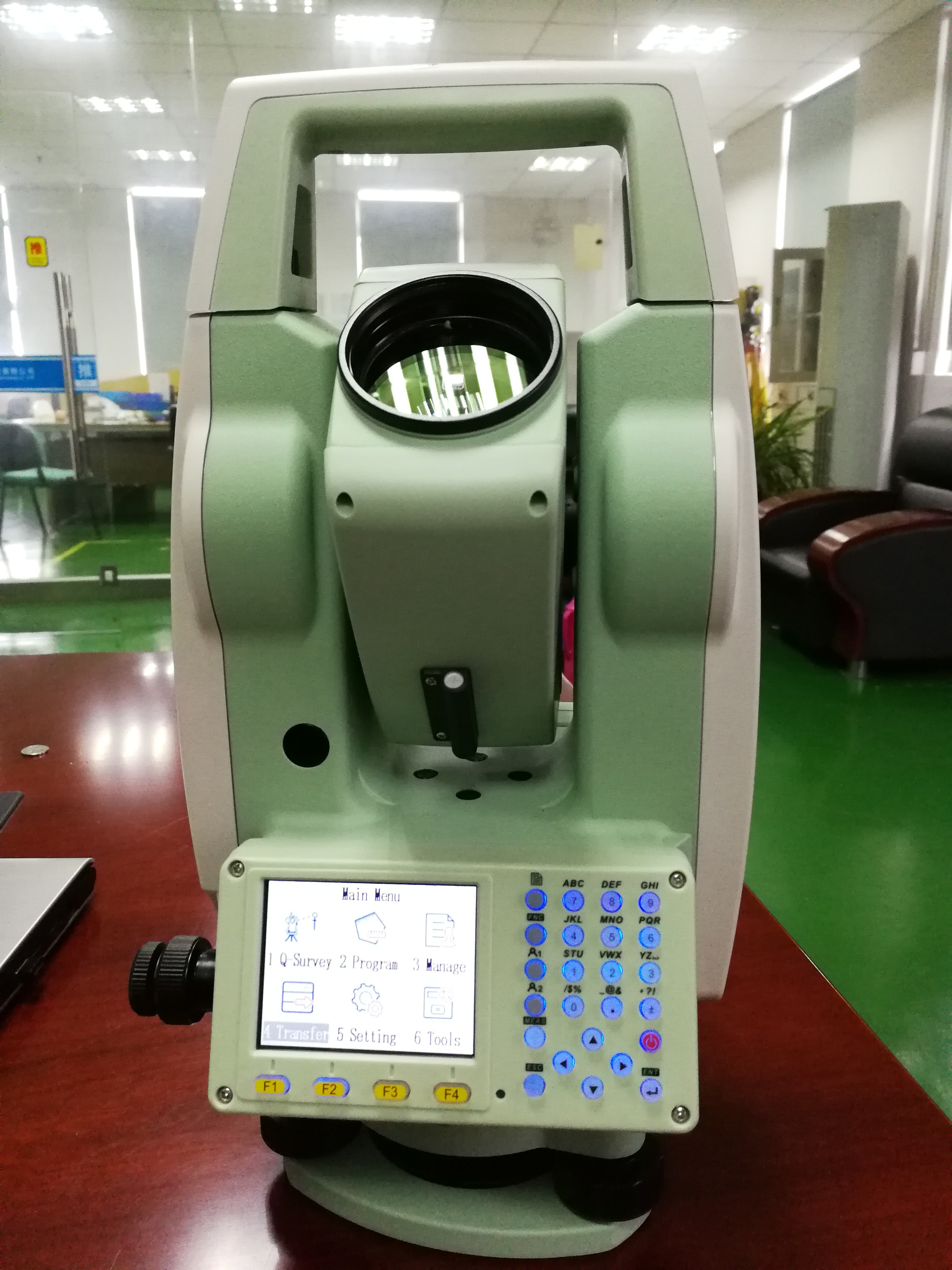

    Sunway ATS120A Reflectorless Total Station:

    Product Description


    High Precision Surveying Equipment Station Total Sunway Ats 120 A
    High Precision Surveying Equipment Station Total Sunway Ats 120 A In Stock For Sale
    * User-friendly software, rich surveying functions
    Precision style OS, extremely welcome by old users of TS, The operation is very similar to TS operation, both on keybords and software, Which is very welcome byTS users and distributors
    Rich surveying functions such as surveying, stakeout, resection, Area/volume,Road, Ref Line/Arc
    * Mulitple operation language
    Support languages: English, Spanish, French, Italian, Turkish, Simplified Chinese

    * Advanced optical path design
    New design 5-axis fully isolate emitting and receiving signal. Reduce optical Crosstalk. The distance measuring accuracy is much improved

    * Ultrafast Measurement
    Fine mode 0.8s, Track mode 0.3s

    * True color screen
    240*320pi high-quality TFT screen, designed for clear reading in strong sunlight condition Brightness is adjustable in 3 levels

    * Smart T-P sensor
    Configured with a Temperature-pressure sensor, one key to get atmosphere conditions

    * Dual-axis compensation
    Advanced dual-axis compensator configured for auto error elimination and auto accuracy compensation. Vivid graphic electronic bubble display

    * Laser pointing& Laser plummet
    With laser pointing function, easier to target the objects, or can be served for orientation.Direct laser plummet on benchmark, make it easier for station point setup

    * Smart calibration functions
    By the built in software, the I.E and compensator zero can be calibrated

    * Rich storage options
    With SD card, USB pen drive, USB interface, which meet diverse data transfer needs

    * BT
    Configured with BT which enables wireless data transfer, and support handbook


    · Handy EDM head
    · Extended internal memory (max. 50000 points)
    · High accuracy & long measuring range
    · Complete application programs
    · Convenient data management system
    · Electronic auto compensator
    · Long-time working battery
    · Superior waterproof; Dustproof
    · Capabilities

    Specification
    True Color Screen TS type OS Sunway Surveying Equipment ATS-120A Total Station
    Model
    ATS-120A
    Angle Measurement
    Measurement Method
    Absolute Encoding
    Minimun Readout
    1″
    Accuracy
    2″
    Telescope
    Magnification
    30X
    Field of View
    1°30″
    Minimum Fousing Distance
    1.5m
    Reticle
    Illuminated
    Compensator
    System
    leicca
    Working Range
    ±3″
    Accuracy
    1″
    Distance Measurement(with Reflector)
    Single Prism (Under general/good conditions)
    4000m/5000m
    Reflective Sheet
    1000m
    Accuracy
    2mm+2ppm
    MeasuringTime(Fine/Tracking)
    0.8s/0.4s ;0.8s/0.3s
    Distance Measurement(Reflectorless)
    Reflectorless Range (Calculated by Kodak Gray Card white side with 90% reflective)
    400m/ 600m/ 800m/ 1000m
    Accuracy
    3mm+2ppm
    Measuring Time
    1.5s
    Communication
    Internal Data Memory
    Approx.20000 Points/SD Card
    Interface
    Standard RS232,Mini-B,USB pen drive
    Wireless Communication
    Buletooth
    Data Format
    ASC
    Operation
    System
    Real-time Operating System
    Display
    True color,320*240 TFT Screen
    Keyboard
    2 sides Alphanumeric backlit crystal keyboard
    Laser Plummet
    Type
    Laer point,4 brightness levels adjustment/Optical plummet(optional)
    Centering Accuracy
    1mm at 1.5m insturument height
    Environmental
    Operating Temperature
    -20ºC-+50ºC(-4F to+122F)
    Storage Temperature
    -40ºC-+70ºC(-40F to +158F)
    Temperature&Pressure
    Auto input
    Dust&Water Proof(IEC60529 Standard)
    IP55
    Power Supply
    Battery Type
    Li-ion battery
    Voltage/Capacity
    ZBA-400:7.4V(DC)/3000mAh
    Operating Time With ZBA-400
    Optimal 16 hours(Continuous angle measurement every 30 seconds)/10 hours(Typical)
    Measuring Times
    Approx.12000 times
