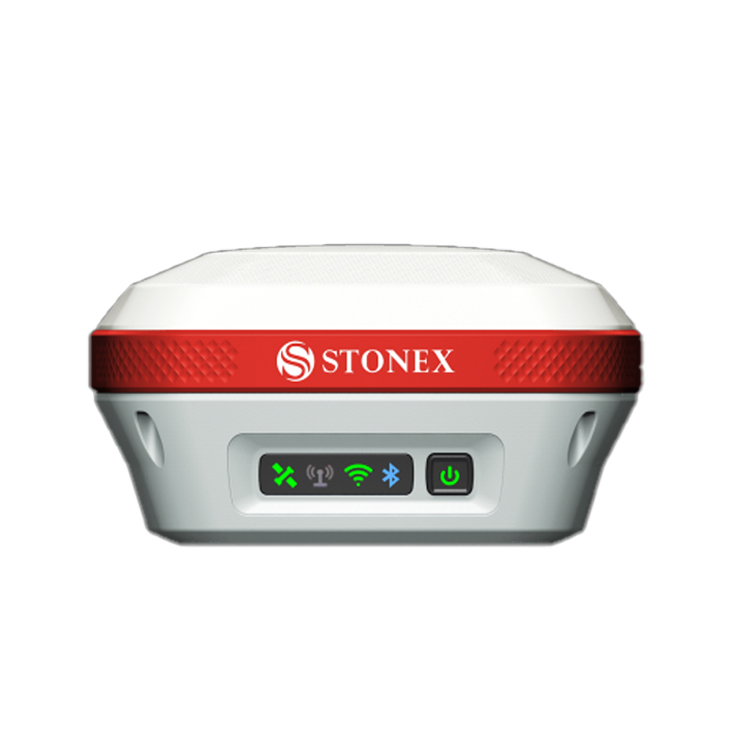

    Stonex S3II SE 800 channels Surveying Hot Selling Products with High Accuracy GNSS Receiver

    Ask Lasest Price
    Brand Name : Stonex Brand
    Model Number : S3II SE
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 1000pcs per year
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Stonex S3II SE 800 channels Surveying Hot Selling Products with High Accuracy GNSS Receiver

    Overview
    Quick Details
    Warranty:
    3 years
    Customized support:
    OBM, ODM, OEM
    Place of Origin:
    Jiangxi, China
    Brand Name:
    Stonex, Stonex
    Product name:
    Stonex S3II SE GPS RTK
    Channels:
    800 Channels
    Model number:
    S3II SE
    Display:
    LCD
    GPS:
    L1C/A, L1C, L1P, L2C, L2P, L5
    Transmitting power:
    0.5W, 1W, 2W adjustable
    BDS:
    B1 B2. B3
    QZSS:
    L1C/A,L1C, L2C, L5, LEX
    Internal battery life:
    Static 12hours
    Supply Ability
    Supply Ability
    500 Set/Sets per Month
    Packaging & Delivery
    Packaging Details
    Stonex 800 Channel Gnss Base and Rover Gps Rtk Stonex S3II SE RTK
    1 set packed in 2 cartons:
    50*50*60cm (25kg)
    15*15*150cm(8kg)
    Port
    SHANGHAI/SHENZHEN/NINGBO
    Lead Time:
    Quantity(sets) 1 - 5 >5
    Est. Time(days) 10 To be negotiated

    Stonex S3II SE 800 channels Surveying Hot Selling Products with High Accuracy GNSS Receiver

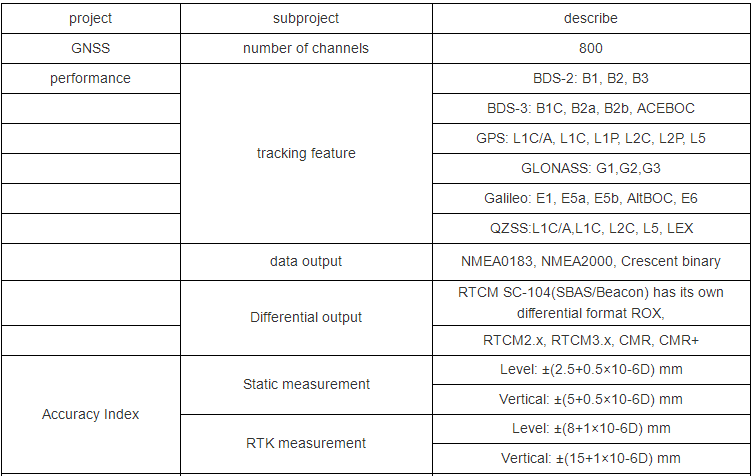

    project subproject describe
    GNSS number of channels 800
    performance tracking feature BDS-2: B1, B2, B3
    BDS-3: B1C, B2a, B2b, ACEBOC
    GPS: L1C/A, L1C, L1P, L2C, L2P, L5
    GLONASS: G1,G2,G3
    Galileo: E1, E5a, E5b, AltBOC, E6
    QZSS:L1C/A,L1C, L2C, L5, LEX
    data output NMEA0183, NMEA2000, Crescent binary
    Differential output RTCM SC-104(SBAS/Beacon) has its own differential format ROX,
    RTCM2.x, RTCM3.x, CMR, CMR+
    Accuracy Index Static measurement Level: ±(2.5+0.5×10-6D) mm
    Vertical: ±(5+0.5×10-6D) mm
    RTK measurement Level: ±(8+1×10-6D) mm
    Vertical: ±(15+1×10-6D) mm
    Inertial navigation measurement (need to be activated separately) Compensation accuracy 8mm+0.3mm/°tilt (<2cm within 30°)
    Compensation position 0~70°
    Inertial navigation update rate 200Hz
    System platform operating system Linux
    Built-in storage Onboard 8G
    V2.1+EDR / V4.0 Dual Mode, Class2
    Wi-Fi 802.11 b/g/n
    Global Radio Protocol TrimTalk, TrimMaskⅢ, SOUTH, PCCEOT,
    Geotalk, Hitarget
    frequency 410-470MHz
    number of channels 7+2400 (7 fixed channels, 2400 customizable channels)
    external radio 5W/35W adjustable
    Electrical properties Battery Built-in smart lithium battery, 6800mAh, 7.2V
    Input voltage 9~28V DC
    Human-computer interaction button The power button is used to turn the host on and off.
    Short press once to broadcast the current working mode and status.
    Data interface TNC interface Connecting the built-in radio antenna
    5-pin interface Used to connect external power supply and external radio.
    Type-C For direct charging, data transfer.
    physical index size 140mm×140mm×71mm
    weight 1100g
    Environmental performance Operating temperature -30℃~+70℃
    storage temperature -40℃~+80℃
    Waterproof and dustproof IP68
    Anti-drop 2 meters drop with the pole (concrete hard ground)
    humidity Resist 99% condensation
    project subproject describe
    Handbook basic parameters model P9Ⅲ
    operating system Android 9
    processor Qualcomm octa-core 64-bit
    RAM+ROM 2GB high-speed DDR3+16GB
    external storage Maximum support 512GB SD expansion
    sensor Electronic Compass, Electronic Bubble, Gravity Sensor
    Camera 13 million autofocus camera
    mobile network Mobile, Telecom, Unicom 4G full Netcom
    WiFi/ 802.11b/g/n,4.1+ LE
    Built-in battery 6000mAh, 3.8V, 22.8Wh
    Protection class IP67
    fall Withstands a 1.2-meter drop from a hard floor
    operating temperature -30℃~+60℃
    storage temperature -40℃~+80℃

    Stonex S3II SE 800 channels Surveying Hot Selling Products with High Accuracy GNSS ReceiverStonex S3II SE 800 channels Surveying Hot Selling Products with High Accuracy GNSS Receiver

    Stonex S3II SE 800 channels Surveying Hot Selling Products with High Accuracy GNSS Receiver

    Packaging & Shipping

    Stonex S3II SE 800 channels Surveying Hot Selling Products with High Accuracy GNSS Receiver

    Our Services

    1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
    2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
    3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
    4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
    5. Technical support is offered 24/365.
