High Accuracy GPS Base RTK GNSS Receiver For Land Survey Kolida K1 Pro

Ask Lasest Price
Brand Name :	Kolida
Model Number :	K1 Pro
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	10pcs/day
Delivery Time :	3-7day

Add to Cart

Product Details
Company Profile

High Accuracy GPS Base RTK GNSS Receiver For Land Survey Kolida K1 Pro

High Performance Cheap Price High accuracy GPS Base and Rover RTK GNSS Land Survey Product Kolida K1 Pro:

Product Description

• Star-Fill Technology Now Available, to Overcome "Non-signal" Spots
• Star-link none-base positioning service (optional)
• Inertial Measurement + GNSS Positioning, Faster & Reliable
• OLED Color Screen, User Friendly Operation
• 10,000 mAh battery, A Whole-day Working With only One Recharge

Star-Fill, Save the signal-loss
This new function will let you continue working a few minutes when radio or mobile signal is becoming very poor or even lose in blind area, the accuracy is down to 2cm.
Work Faster, Wait Less
The Maxwell 7 GNSS engine inside K1 PRO provides an ultra-fast positioning speed, typically it starts tracking satellite signal within 5 seconds after turning on, coordinate can be acquired within 10 seconds.
Star-Link Correction Infinite Freedom
2cm Accuracy Star-Link correction service is available now! After subscribing to it, surveyors can work almost anywhere in the world without a base station or VRS network

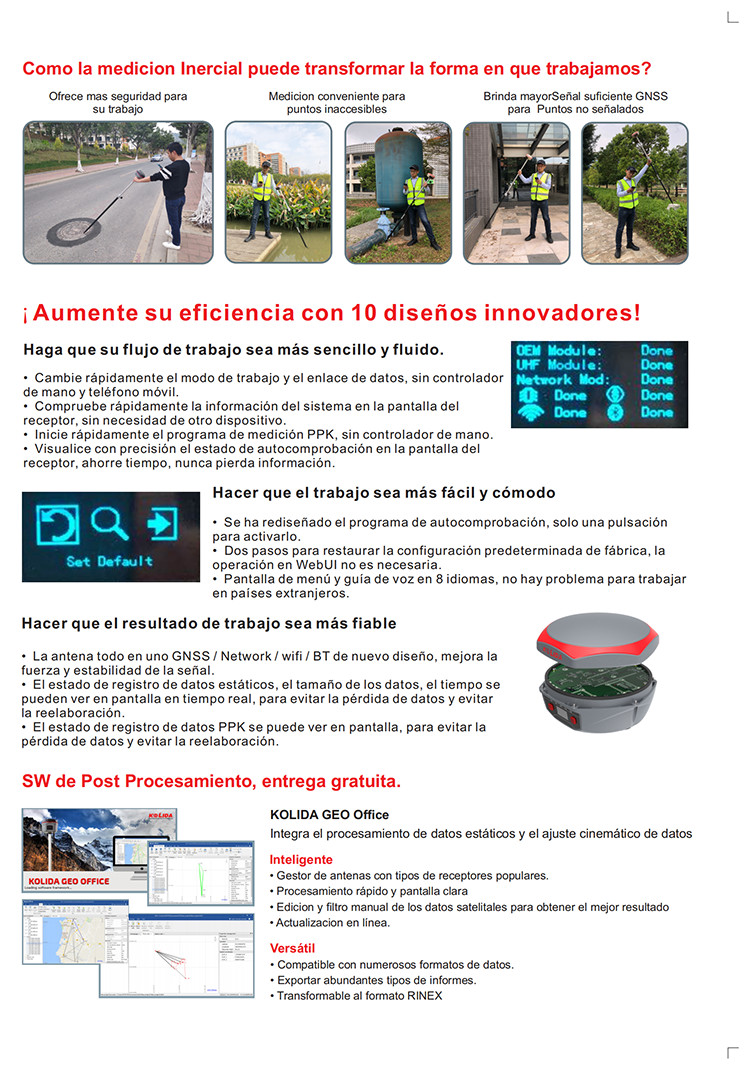

Intertial Measurement, Fast and Flexible
The newly developed inertial tilt survey is no more affected by the earth's magnetic field and requires no correction. The maximum tilt angle has been improved to 60 °, measurement speed is increased by over 30%.

High Accuracy GPS Base RTK GNSS Receiver For Land Survey Kolida K1 Pro

Technical parameter

Specification
GNSS Features	Channels	336
	GPS	L1, L1C, L2C, L2P, L5
	GLONASS	G1, G2, G3
	BDS	BDS-2: B1I, B2I, B3I
	BDS	BDS-3: B1I, B3I, B1C, B2a, B2b*
	GALILEOS	E1, E5A, E5B, E6C, AltBOC*
	SBAS	L1*
	IRNSS	L5*
	QZSS	L1, L2C, L5*
	MSS L-Band (Reserve)
	Positioning output rate	1Hz~20Hz
	Initialization time	< 10s
	Initialization reliability	> 99.99%
Positioning Precision	Code differential GNSS positioning	Horizontal: 0.25 m + 1 ppm RMS
	Code differential GNSS positioning	Vertical: 0.50 m + 1 ppm RMS
	GNSS static	Horizontal: 2.5 mm + 0.5 ppm RMS
	GNSS static	Vertical: 5 mm + 0.5 ppm RMS
	Real-time kinematic	Horizontal: 8 mm + 1 ppm RMS
	(Baseline<30km)	Vertical: 15 mm + 1 ppm RMS
	SBAS positioning	Typically < 5m 3DRMS
	RTK initialization time	2 ~ 8s
	IMU tilt compensation	Additional horizontal pole tip uncertainty
	IMU tilt compensation	typically less than 10mm + 0.7 mm/° tilt down to 30°
	IMU tilt angle	0° ~ 60°
Hardware Performance	Dimension	130.5mm(φ) × 84mm(H)
	Weight	850g (battery included)
	Material	Magnesium aluminum alloy shell
	Operating temperature	-25℃ ~ +65℃
	Storage temperature	-35℃ ~ +80℃
	Humidity	100% Non-condensing
	Waterproof/Dustproof	IP68 standard, protected from long time immersion to depth of 1m IP68 standard, fully protected against blowing dust
	Shock/Vibration	Withstand 2 meters pole drop onto the cement ground naturally
	Power supply	6-28V DC, overvoltage protection
	Battery	Inbuilt 6800mAh rechargeable, removable Lithium-ion battery
	Battery life	Single battery: 16h (static mode), 8h (Base + UHF), 12h (Rover + UHF), 15h (Rover + Bluetooth)
Communications	I/O Port	5PIN LEMO external power port + Rs232
		Type-C interface (charge + OTG + Ethernet)
		1 UHF antenna interface
		SIM card slot (Micro SIM)
	Internal UHF	Radio receiver and transmitter, 1W/2W/3W switchable
	Frequency range	410 - 470MHz
	Communication protocol	Farlink, Trimtalk450s, SOUTH, SOUTH+, SOUTHx, HUACE, Hi-target, Satel
	Communication range	Typically 8km with Farlink protocol
	Cellular mobile network	4G cellular module standard, customizable 5G module
	Bluetooth	Bluetooth 3.0/4.1 standard, Bluetooth 2.1 + EDR
	NFC Communication	Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless communication module else)
WIFI	Modem	802.11 b/g standard
	WIFI hotspot	Receiver broadcasts its hotspot form web UI accessing with any mobile terminals
	WIFI datalink	Receiver can transmit and receive correction data stream via WiFi datalink
Data Storage/Transmission	Storage	8GB SSD internal storage standard, extendable up to 64GB
		Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough)
		Support external USB storage
		The customizable sample interval is up to 20Hz
	Data transmission	Plug and play mode of USB data transmission
	Data transmission	Supports FTP/HTTP data download
	Data format	Static data format: STH, Rinex2.01, Rinex3.02 and etc.
		Differential data format: CMR, SCMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
		GPS output data format: NMEA 0183, PJK plane coordinate, Binary code, Trimble GSOF
		Network model support: VRS, FKP, MAC, fully support NTRIP protocol
Sensors	Electronic bubble	Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time
	IMU	Built-in IMU module, calibration-free and immue to magnetic interference
	Thermometer	Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature
User Interaction	Operating system	Linux
	Buttons	Single button
	Indicators	5 LED indicators
	Web interaction	With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely
	Voice guidance	It provides status and operation voice guidance, and supports Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish
	Secondary development	Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition
	Cloud service	The powerful cloud platform provides online services like remote manage, firmware update, online register and etc.
