    Built-in radio is relatively large with 5w transmit power and can transmit about 8km RTK CHCNAV B5 Base GNSS Receiver

    Ask Lasest Price
    Brand Name : CHCNAV
    Model Number : B5
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10pcs/day
    Delivery Time : 5-10day
    • Product Details
    • Company Profile

    Built-in radio is relatively large with 5w transmit power and can transmit about 8km RTK CHCNAV B5 Base GNSS Receiver

    Product Description

    Built-in radio is relatively large with 5w transmit power and can transmit about 8km RTK CHCNAV B5 Base GNSS Receiver :


    Features:

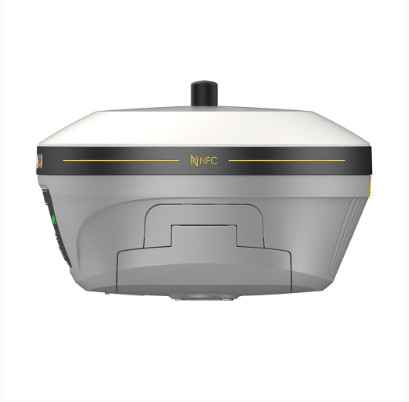

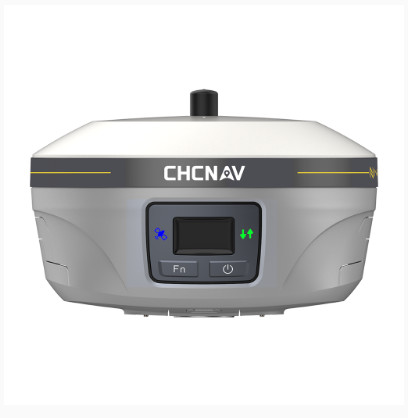

    The B5 GNSS receiver removes barriers to portability without sacrificing performance. Featuring full GNSS technology, it offers best-in-class GNSS signal tracking even in a harsh environment, enabling GNSS surveying beyond usual constraints. The B5 GNSS incorporates the latest innovations such as an inertial module providing automatic pole-tilt compensation in a very compact design. Connected to a GNSS RTK network via CHCNAV LandStar field software, or combined with the iBase GNSS receiver, the B5 GNSS is a highly productive rover for surveying and stakeout in any topographic, mapping or construction site applications.

    Built-in radio is relatively large with 5w transmit power and can transmit about 8km RTK CHCNAV B5 Base GNSS ReceiverBuilt-in radio is relatively large with 5w transmit power and can transmit about 8km RTK CHCNAV B5 Base GNSS ReceiverBuilt-in radio is relatively large with 5w transmit power and can transmit about 8km RTK CHCNAV B5 Base GNSS ReceiverBuilt-in radio is relatively large with 5w transmit power and can transmit about 8km RTK CHCNAV B5 Base GNSS Receiver



    Technical parameter
    projectcontentparameter
    Receiver characteristicssatellite trackingGPS+BDS+Glonass+galileo+QZSS, supporting the third generation of Beidou, achieving 5 stars and 16 frequencies
    Channels624
    operating systemLinux system
    Initialization time
    Initialization reliability>99.99%
    Receiver appearancebutton1 dynamic/static switch key, 1 power key
    Indicator light1 differential signal light, 1 satellite light
    Display screen1 LCD display
    Nominal accuracyStatic accuracyPlane accuracy: ±(2.5+ 0.5×10-6×D) mm
    Elevation accuracy: ±(5+0.5×10-6×D) mm
    RTK accuracyPlane accuracy: ±(8 + 1×10-6×D) mm
    Elevation accuracy: ±(15+ 1×10-6×D) mm
    Single machine accuracy1.5m
    Code difference accuracyPlane accuracy: ±(0.25+ 1×10-6×D) m
    Elevation accuracy: ±(0.5+ 1×10-6×D) m
    Electrification parametersBatteryRemovable 14000mAh lithium battery, support base station 12+ hours battery life
    External power supplyThe host can be powered by DC power supply, 220V AC power supply, and can directly power the host through the radio (9-24) V DC
    Physical propertiessizeΦ160.54 mm*103 mm
    weight1.73kg
    MaterialMagnesium alloy AZ91D body
    Operating temperature-45℃~+85℃
    storage temperature-55℃~+85℃
    Waterproof and dustproofIP68 level
    Shock vibrationIK08 level
    Anti-dropResistance to free fall of 2 meters
    Data communicationI/O interface1 external UHF antenna interface
    1 seven-pin data port interface, support power supply, differential data output
    1 nano sim card slot
    Built-in esim, free of charge for surveying and mapping for three years at the factory
    Radio stationBuilt-in transceiver, power: up to 5W
    Network moduleSupport 4G full Netcom
    blue toothBT 4.0, backward compatible with BT2.x, protocol support Win/Android/IOS system
    Wi-Fi802.11 b/g/n
    NFCSupport NFC flash connection
    Data outputoutput formatNMEA 0183, binary code
    output methodBT/Wi-Fi/Radio/Serial
    Static storagestorage formatCan directly record HCN, HRC, RINEX
    storageStandard 8GB memory
    Download methodFTP remote push + local one-click download, HTTP download
    ReceiverSuper twinSupport radio + network two-way data differential at the same time, provide comprehensive data services
    one-button startChinaTest researches and develops data link concurrent communication technology, and the base station is set up immediately
    Packaging & Shipping


    Economical 2


    Our Services

    1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
    2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
    3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
    4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
    5. Technical support is offered 24/365.
