    Chinese Brand 336 Channels FOIF A90 GPS RTK GNSS Receiver Price

    Ask Lasest Price
    Brand Name : Foif
    Model Number : A90
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10pcs/day
    Delivery Time : 5-10day
    • Product Details
    • Company Profile

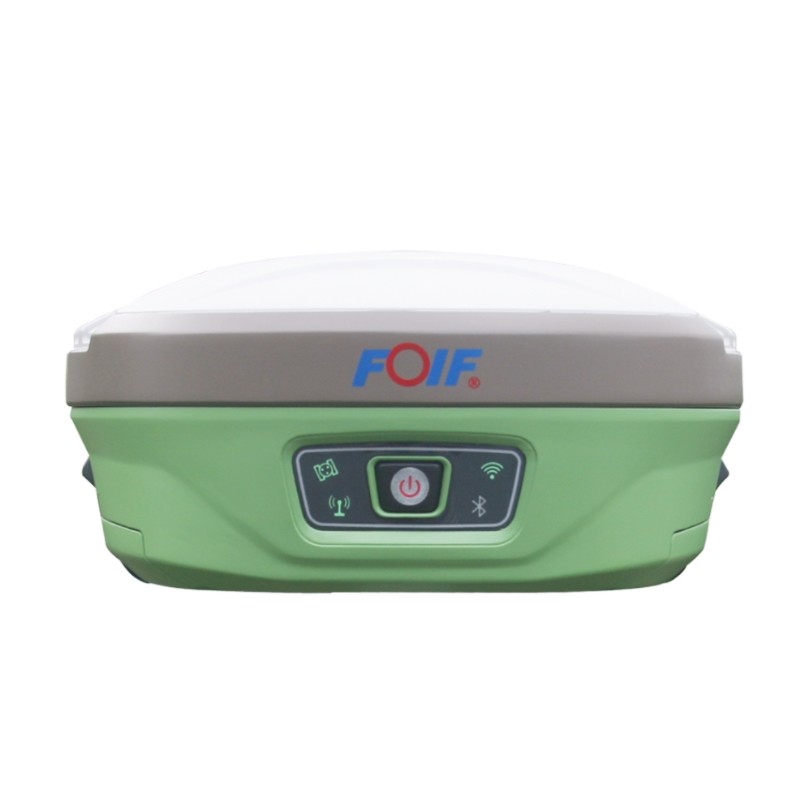

    Chinese Brand 336 Channels FOIF A90 GPS RTK GNSS Receiver Price

    336 Channels FOIF A90 GPS RTK GNSS Receiver price
    Product Description

    High Performance FOIF A90 GPS RTK Dual Frequency GNSS system with IMU tilt survey receiver:


    • Automatic data collection during centering.


    • When the pole is tilted in 30 degrees, A90 still could get the right point data by automatic correct system.


    Technical parameter
    GNSS Performance
    Channels
    800
    GPS
    GPS:L1C/A,L1C,L1P(Y),L2C,L2P(Y),L5
    GLONASS
    G1P1,G2P2,G1OC,G2OC,G3OC
    Galileo
    E1BC,E5a,E5b,E5ALTBOC,E6BC
    BeiDou
    B1, B2, B3
    SBAS
    L1
    QZSS
    L1CA,L2C,L5,L1C,LEX
    L-Band
    GNSS Accuracies

    Real time
    kinematics (RTK)
    Horizontal: 8 mm + 1 ppm RMS
    Vertical: 15 mm + 1 ppm RMS
    Initialization time: < 10 s
    Initialization reliability: > 99.9%
    Positioning rate
    5 Hz
    Hardware
    Size (L x W x H)
    φ156mm×76mmH
    Weight
    1.2kg

    Environment
    Operating:-30°C to +65°C
    (-40°F to +149°F)
    Storage: -40°C to +80°C
    (-40°F to +185°F
    Ingress protection
    IP67 waterproof and dustproof, protected
    from temporary mmersion to depth 1m

    Tilt sensor
    Calibration-free IMU for pole -tilt
    compensation.Immune to magnetic
    disturbances.
    Front panel
    4 status indicators and power indicator
    Communication
    Wi-Fi
    802.11 b/g/n, access point mode
    bluetoothS
    V2.1+EDR/V4.1 dual mode, Class2
    Others
    NFC
    UHFradio
    Transmitting power: 1w, frequency: 410-470MHz
    Radio protocol: SATEL, PCC-EOT, TrimTalk450S, South9600, South19200, Hi-Target9600, Hi-Target19200, TrimMarkIII (19200),
    TrimMarkI, GEOTALK, GEOMARK
    Data storage
    8 GBinternal memory
    Electrical
    Input voltage
    DC 9V-18V
    battery capacity
    7.2v,24.5wh(standard two batteries)
    battery Life timer
    Static survey:15 hours,
    rover rtk survey:12h


    Chinese Brand 336 Channels FOIF A90 GPS RTK GNSS Receiver Price

    Chinese Brand 336 Channels FOIF A90 GPS RTK GNSS Receiver Price
    Chinese Brand 336 Channels FOIF A90 GPS RTK GNSS Receiver Price
    Chinese Brand 336 Channels FOIF A90 GPS RTK GNSS Receiver Price
    Packaging & Shipping


    Economical 2


    Our Services

    1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
    2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
    3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
    4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
    5. Technical support is offered 24/365.


    Company Information

    Shanghai Galxy International Trade company, Ltd. combining with developing, researching and producing. Our company is located in Pudong Developing Zone, and has two subsidiary companies: Shanghai Galaxy International Trade Co., Ltd. and Mato Opto-electrical High-tech Company. Our company has researching center and factory in Changzhou.

    Our main products are as following: total station, electronic theodolite, automatic level, laser level, rotation laser, GPS, distance laser sensor and accessories, such as tripod, prism, pole, staff and USB cable for total station. Our company designs software for many domestic and oversea factories, for example, Boif, TJOP, Stanley, and Cst-Berger. We have powerful capacity in technical research, and the products we designed have advanced technology and steady performance. The non-prism total station and the absolute coding measure instrument we developed and produced have very competitive points in the measure instrument market.

    We expect that we could cooperate with more business partners from all over the world. In addition, we can do OEM service for companies or dealers that want to find better producers in China.

    Our goal is to produce the best surveying instruments in the world.

    Our target is to globalize the market, internationalize the quality and maximize the profit!
    Economical 2

    FAQ

    1. What kind payment method we accept?
    T/T, L/C at sight, Western Union, Trade Assurance on Alibaba
    Note: Customer will be requested to pay 4% transaction fee upon total amount charged by EBAY.
    2. How can you guarantee payment safety ?
    Our company supports TRADE ASSURANCE service. If you will choose payment through ALIBABA TRADE ASSURANCE service, you payment will be guaranteed. Because we are not able to receive payment until you confirm goods receipt.
    3. What kinds of shipment for goods and how long time it takes ?
    Our company supports DHL, FEDEX, UPS, TNT, CHINA POST, by sea and other methods. Shipping time is 3-5 days from payment receipt.
    4. Does your company ship battery or not ?
    Our company can receive battery order and ship to customer normally, except a few special countries.
    5. Do you have other items not displayed on your website ?
    Yes, our company supplies full survey range products. If you are looking for product not displayed on our website. Please contact us freely. We will reply you on time.
